Series	:	JFX200-2513
Dimension	:	173.2"x96.4"x49.2"
Maximum Print Width	:	98.4"x51.4"
Print Speed	:	269 SqFt/Hr
Resolution	:	300, 450, 600, 900, 1200 dpi
Number of Colors	:	6, 7 or 8
Power Source	:	AC 200-240V, 50/60 Hz

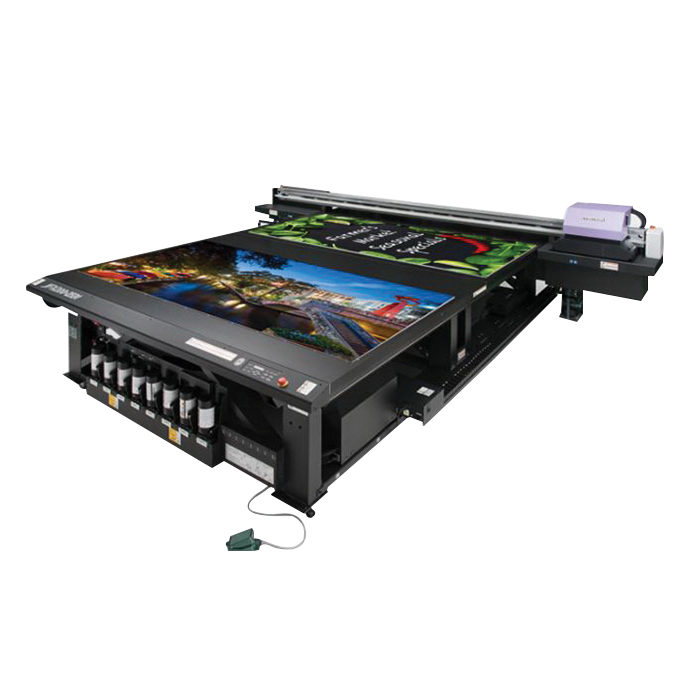

Mimaki JFX200-2531 extended-bed UV-LED flatbed printer is based on the popular JFX200-2513 printer, with double the print area and twin independent vacuum pumps to increase productivity by enabling printing to continue from one origin while the other is prepared. A variety of inks including white, clear and jettable primer are available to suit nearly any application. The UV-LED lamps offer reduced energy consumption and a longer lamp lifetime.High productivity and print speedLayout pins ensure proper media alignmentVariable dot technology and mimaki advanced pass system deliver smooth gradients and mid tonesTwin independent vacuum pumps for user controllable media switchingStandard ionizer bar reduces static-related print issuesWaveform Control (WFC) produces images that are optimizedNozzle recovery system ensues production and costs are not impactedMimaki Circulation Technology (MCT) reduces clogging in white inkTable ships in two parts that are joined on site for easy installationLow-energy UV-LED lamps last 5 Year or moreStaggered array of 2 headsUpto 50 mm media thickness1 L bottle for each color ink capacityVacuum unit and high performance Rasterlink 6 RIP software as standard1-phase, 200 - 240 Volt AC 12 Amp or less, 8 Amp or less (two inlets)4.8 kVA power consumptionLED-UV systemWith RIP (Raster Link 6) ionizer kitStandard/Approvals: VCCI Class A, CE Certified, CB Report, UL Listed, RoHS Compliant, UL60950-1, FCC Class AApplication: For Print on Signs and Posters, Exhibition Graphics/Signs, Backlit Panels, Interior Decor, Packaging Prototypes, Industrial Applications
